Inserting and managing math formulae
The editor allows you to insert a mathematical formula into your document.
How to insert a math formulae
Place your cursor in the provision that you would like to insert formula after
Select to insert an formula by:
Right-click menu in the Editor View “Insert Math Formula”
From the upper tool bar, select Insert > Insert Math Formula

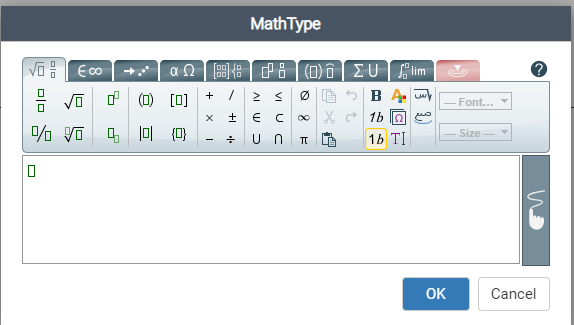

The system will present a "MathType" dialogue box
Either create the formula using the buttons or free text editor entry, or
Use the freehand option to draw the formula
Click OK
Lawmaker will insert the formula on the line below the text in your provision, followed by the "where—" statement
How to delete a math formulae
Click on the formula in the Editor
Select ‘tblock-formula’ from the breadcrumb and click ‘backspace’ or 'delete'
The formula will be removed from the document but the "Where—" statement will remain
To remove with "Where—" statement, click on it and select "Text" and click ‘backspace’ or 'delete'
How to update a math formulae
Double-click on the formula
Make any changes in the "MathType" dialogue box and click on OK.
Hints and tips
You can only adjust the font size and font in the "MathType" dialogue box if required
You can view a third-party demonstration here - MathType demo - Equations editor (wiris.com)
